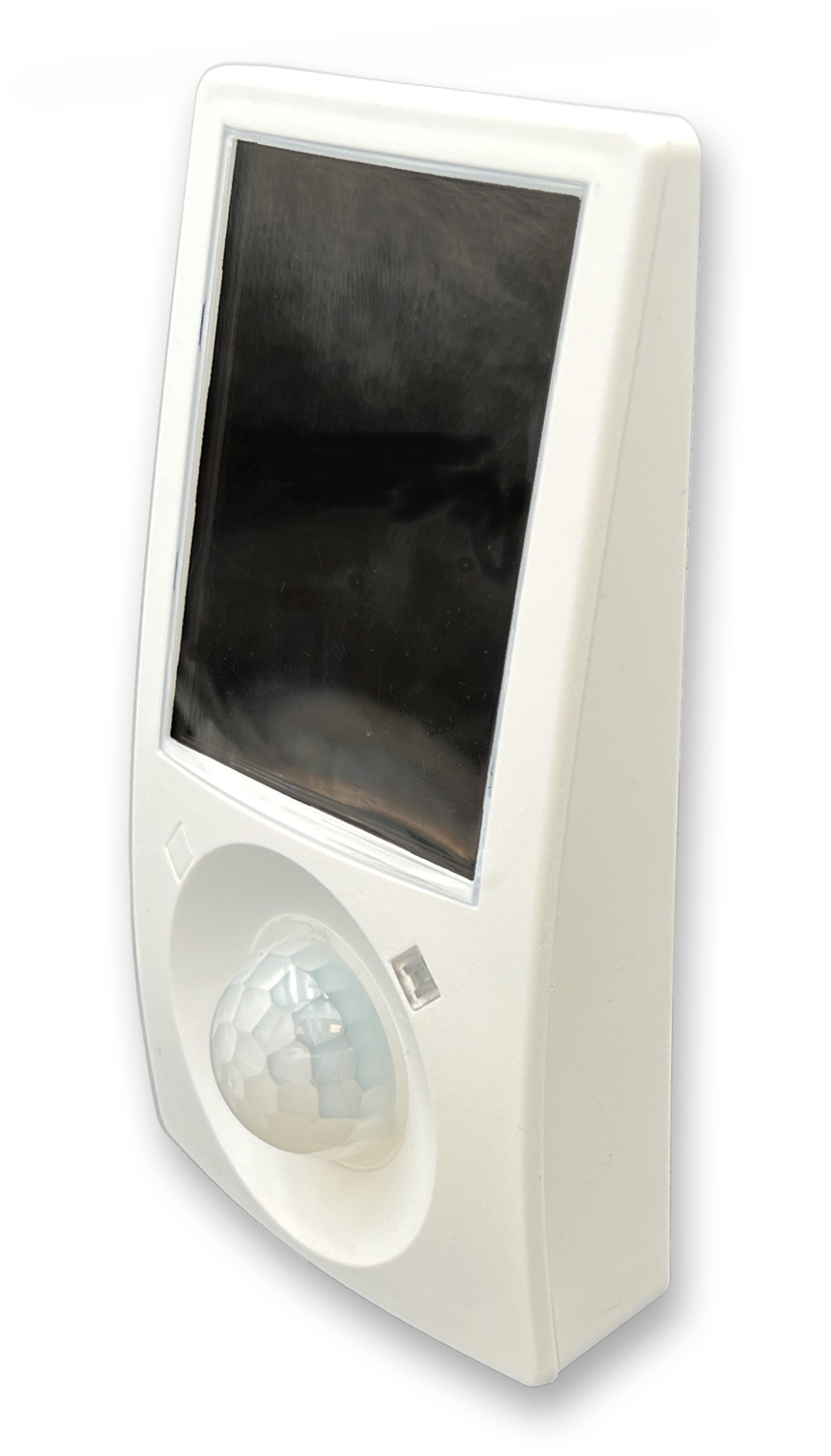

AL-432-00-902 EnoSense® PIR Ceiling / FCC – EnOcean Motion sensor

The AL-432-00-921 EnoSense® PIR Ceiling contains a high sensitive PIR sensor that detects moving people in range.

Best case, the sensor is supplied with energy by the integrated solar cell in the front. In situations where the ambient light is not sufficient, an internal battery supplies the sensor energy storage for typically 5 years or longer.

The information is transmitted via the EnOcean wireless standard, EEP: A5-07-01.

The following information is transmitted:
• Motion detected, 0..1
• Super Cap voltage: 8 bit, 0 .. 250 [mV/20]
