Smart EnOcean Home Gateway

Description

• Linux-based, wall-mounted, home IP-gateway with touch display, translating EnOcean-Radio Communication (Energy Harvesting Wireless Technology) into different IP-worlds
• Hosting of Smart home software at application layer, adaptable to customer / project requirements
• End user access via touch interaction (TFT, 7“)
• Web interface to view, control or manage EnOcean devices
• local configuration and maintenance via access point mode
• Supports EnOcean Security/AES Encryption
• Supports EnOcean Remote Commissioning
• Product concept is governed by the obligation to avoid any exposure of 230 V to the user, even in case of collisions and dismantling
• radio approvals, CE conformity

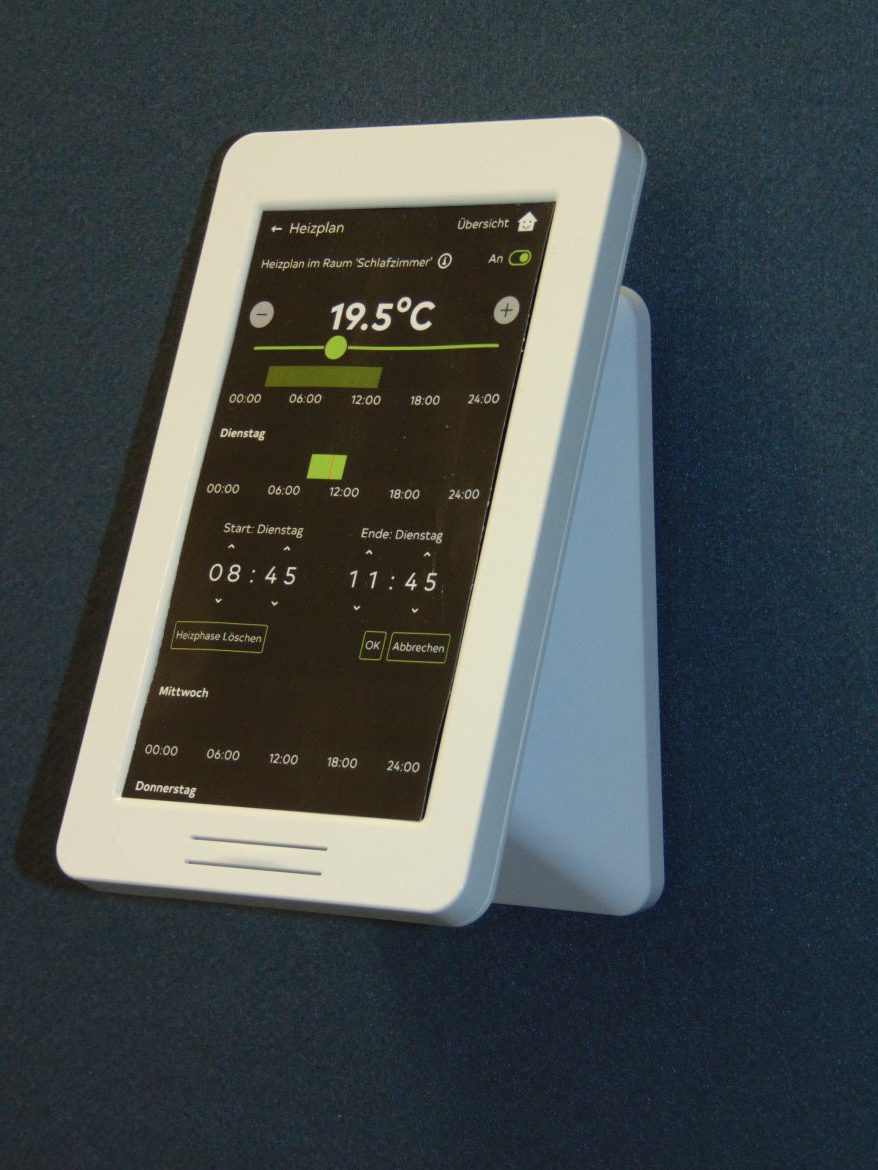

• The Home Gateway shown was co-created by Digital Concepts GmbH (Hardware, FW) and IOLite-IQ GmbH (Application, UI).

Technical Features

• ARM quadcore embedded design
• Supports standard EnOcean profiles (www.enocean-alliance.org) as well as manufacture specific profiles
• Update capability for future EnOcean products (868.3 MHz, ISO/IEC 14543-3-10)
• No limits regarding the number of sensors and actuators which can be connected
• Prepared for customer application layer
• Simple API, string based (tcp) and powerfull API REST/JSON based (http)
• IoT development kit for Intelligent Buildings (Node-Red)
• Fully open bidirectional REST/JSON API with device administration for a seamless integration in any existing ecosystem
• Out of the box integration with the IBM Watson IoT platform and Microsoft Azure Cloud
• Flexible and energy efficient hardware
• Multiple connections to the network (LTE CAT1 (no TDD), fallback EDGE /GPRS; WLAN 802.11 b/g/n), simultaneous operation enabled
• wMBus integration prepared (EN13757-4:2017-11, operational modes S, T, R2)
• integrated LTE-micro SIM (3FF / mini-UICC), not accessible externally
• USB interface
• TFT display, 7 inch diagonal, RGB, 800 * 480 dots, capactive touch, activate via wake-up button
• „home“ button with tricolor RGB-LED for status signaling
• HW-reset button
• Consists of two modules: a display unit and a wall socket unit
