Eltako Wireless 2- or 4-way pushbutton without battery or wire, without frame FT4CH-

Wireless 2- or 4-way pushbutton for internal frame dimensions 60 x 60 mm, 15 mm high, Feller Swiss. ­Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss. With rocker and double rocker. Also for cover frames from ABB Normelec and Hager.

Eltako Wireless 2- or 4-way pushbutton, without frame FT55R-

Wireless 4-way pushbutton 55 x 55 mm for Busch Jäger Reflex and Duro cover frames. Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss.

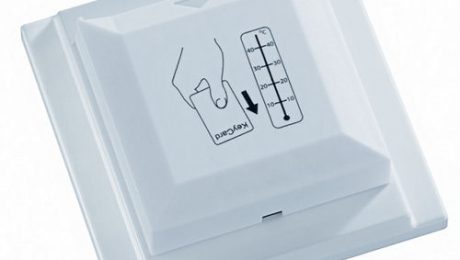

Eltako Key card switch in E-Design65 FKF65-wg

Wireless card switch for surface mounting 84 x 84 x 29 mm. Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss.

Eltako Wireless pull switch in E-Design65 FZS65-wg

Wireless pull switch for surface mounting 84 x 84 x 24 mm. With silver and red handle. Generates the power for wireless telegrams itself when the button is pressed, therefore there is no connecting wire and no standby loss. When the handle is pulled and released, a wireless telegram is sent to the Eltako ­wireless network. The scope of supply

Eltako Wireless repeater pure white glossy FRP65/230V-wg

2 level wireless repeaters in the housing for single mounting 84 x 84 x 30 mm. Only 0.8 watt standby loss.

Eltako Wireless motion/brightness sensor in E-Design65 FBH65S/12V DC-wg

Wireless motion/brightness sensor pure white glossy for surface mounting 84 x 84 x 39 mm or mounting into the E-Design65 switching system. Power supply with the integrated solar cell or a 12 V DC power supply unit. Only 1 mW standby loss.

Eltako Wireless motion/brightness sensor in E-Design65 FBH65/12V DC-wg

Wireless motion/brightness sensor pure white glossy for surface mounting 84 x 84 x 39 mm or mounting into the E-Design65 switching system. Power supply with a 12 V DC power supply unit. Only 1 mW standby loss.

Eltako Wireless universal actuator FUA12-230V

Wireless universal actuator with exchangeable antenna. Impulse switch ­with integrated relay function with 1 change over contact potential free 10 A/250 V AC, incandescent lamps up to 2000 W, with DX technology. Bidirectional. Encrypted wireless. Only 0.9 watt standby loss.

Eltako Wireless outdoor motion/brightness sensor FABH130/230V-rw

Wireless outdoor motion/brightness sensor pure white, 130 x 85 x 100 mm, protection class IP55. 1 NO contact not potential free 10 A/250 V AC, incandescent lamps 2300 Watt. Power supply 230 V. Only 0.9 watt standby loss. The wireless sensor can be taught in the actuators listed below and in Professional Smart Home controller: FSR14, FSR61, FSR71.

Eltako Wireless outdoor transmitter module 2 channels FASM60-UC

L x W x H: 60 x 46 x 30 mm (dimensions excluding fixing screws). With internal antenna. No standby loss. The wireless transmitter module FASM60-UC has two channels and can transmit wireless pushbutton telegrams to the Eltako building wireless system. A1 initiates a wireless telegram, such as ‘Press top rocker’ for a wireless pushbutton with one rocker and A3 such as ‘Press bottom
