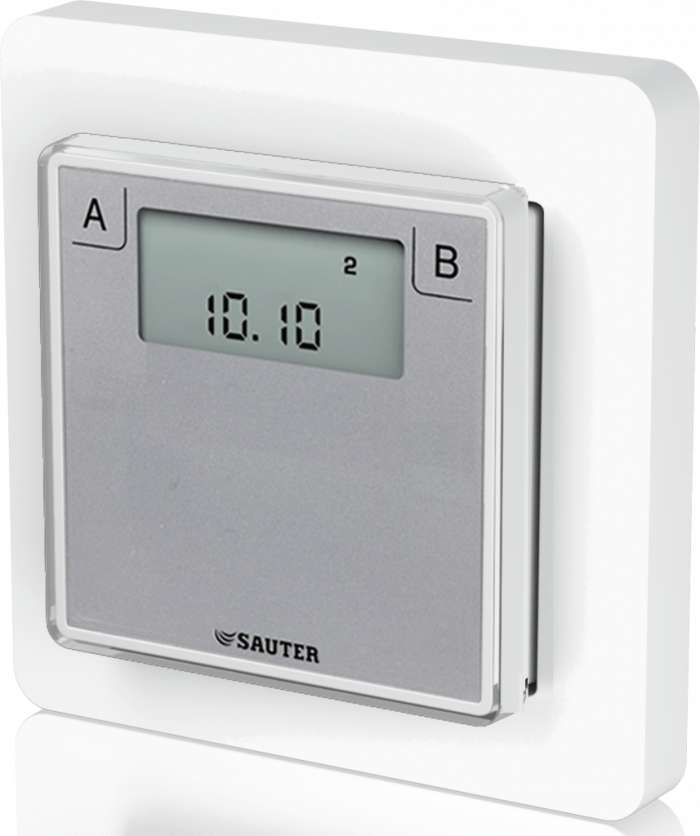

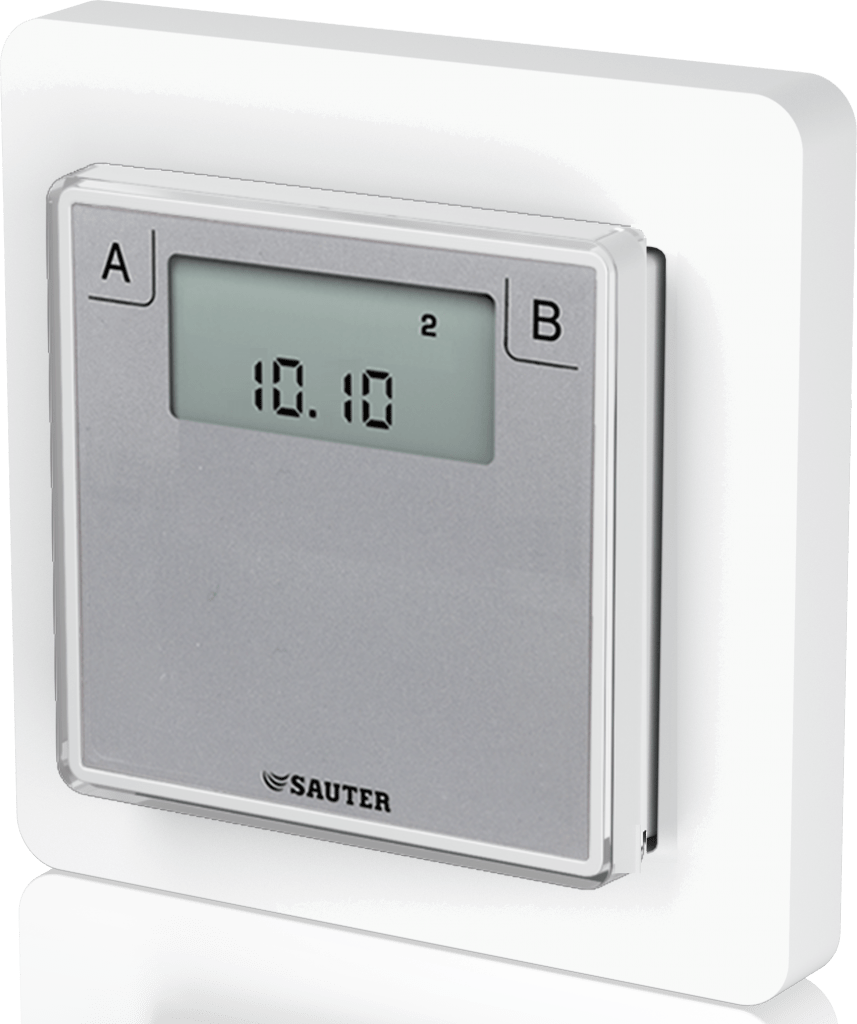

ecosCom581 – Wireless interface, EnOcean (EY-CM581)

Bi-directional wireless communication interface for SAUTER room automation controllers “ecos”; EnOcean TCM300; SAUTER Local Communication (SLC) protocol with RS-485.

  • Part of the SAUTER modulo system family
  • Bidirectional wireless communication according to EnOcean (ISO/IEC 14543-3-10)
  • Internal, optimised wireless antenna (no BNC antenna necessary)
  • Integration of EnOcean devices: SAUTER ecoUnit110 room sensor and ecoUnit146 room operating unit and other EnOcean devices from third-party manufacturers
  • Wide-range supply voltage for compatibility with ecos 5 and ecos311 room controllers and modulo 6 automation stations
  • RS-485 interface for remote, optimum positioning of the wireless interface in the room
  • Firmware update via SLC/RS-485
  • Device insert with transparent front, fits into frame with 55 x 55 mm aperture
  • Frame and white cover front can be ordered as accessories
  • Frames and foils in many colours and designs possible
  • Product No. EY-CM581F081
  • Manufacturer SAUTERhttp://www.sauter-controls.com
  • Category Gateway: Other, Gateway: RS485
  • Frequency 868 MHz (ASK): Europe, China
  • RX-EEP D2-00-01, A5-10-01, A5-10-02, A5-10-03, A5-10-04, A5-10-05, A5-10-06, A5-10-07, A5-10-08, A5-10-09, A5-10-0C, A5-10-0D, A5-10-0A, A5-10-0B, A5-10-10, A5-10-11, A5-10-12, A5-10-13, A5-10-14, A5-08-01, A5-08-02, A5-08-03, A5-02-01, A5-02-02, A5-02-03, A5-02-04, A5-02-05, A5-02-06, A5-02-07, A5-02-08, A5-02-09, A5-02-0A, A5-02-0B, A5-02-10, A5-02-11, A5-02-12, A5-02-13, A5-02-14, A5-02-15, A5-02-16, A5-02-17, A5-02-18, A5-02-19, A5-02-1A, A5-02-1B, A5-06-01, A5-06-02, A5-07-01, D5-00-01, F6-02-01, F6-02-02, F6-10-00
  • TX-EEP D2-00-01
  • Certification Certified Level 2
