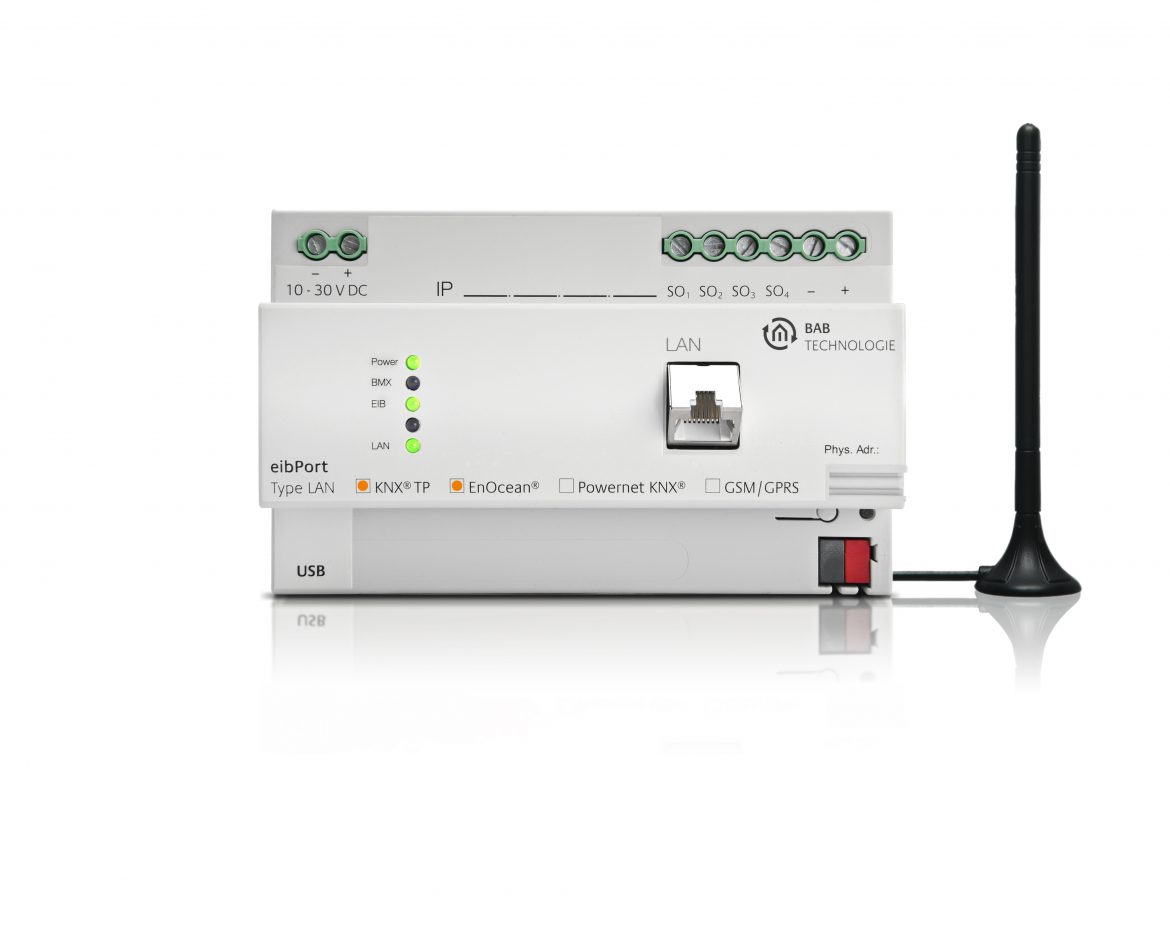

eibPort LAN-KNX-EnOcean Version 3

Automation and visualization gateway for your building control. eibPort device connects your building control with Ethernet and Home-Entertainment. Through the network interface, it is e.g. possible to switch a beamer or start the preferred mp3 playlist by using a pushbutton. Furthermore, the eibPort provides an excellent visualization and automation of the whole building control. The setup of the device is as well simple as also intuitiv. The access to the building control can be realised locally or via remote access by PC, Laptop, Tablet or Smart Phone. The only thing requisite is a standard Internet browser. Integrated services allow to implement self-acting functionalties as timer function, scenes, logical functions etc without starting an additional visualization (even in case of overlapping address ranges). For monitoring purposes network cameras can be integrated into the visualization. Messages (e.g. faults, housebreaking alarms) are sent as Email and/or SMS to your mobile phone. With the help of the service for distributed installation coupling properties are centrally merged (even when overlapping addresses). The power consumption is less than 5W.

  • Manufacturer b.a.b-technologiehttp://www.bab-tec.de
  • Category Gateway: KNX, Gateways
  • Frequency 868MHz (ASK): EU (and potentially others e.g. Non-EU Europe, China, Singapure…)
  • RX-EEP A5-02-01, A5-02-02, A5-02-03, A5-02-04, A5-02-05, A5-02-06, A5-02-07, A5-02-08, A5-02-09, A5-02-0A, A5-02-0B, A5-02-10, A5-02-11, A5-02-12, A5-02-13, A5-02-14, A5-02-15, A5-02-16, A5-02-17, A5-02-18, A5-02-19, A5-02-1A, A5-02-1B, A5-02-20, A5-02-30, A5-04-01, A5-04-02, A5-04-03, A5-06-01, A5-06-02, A5-07-01, A5-07-02, A5-07-03, A5-08-01, A5-08-02, A5-08-03, A5-09-04, A5-10-01, A5-10-02, A5-10-03, A5-10-04, A5-10-05, A5-10-06, A5-10-07, A5-10-08, A5-10-09, A5-10-0A, A5-10-0B, A5-10-0C, A5-10-0D, A5-10-10, A5-10-11, A5-10-12, A5-10-13, A5-10-14, A5-11-01, A5-12-01, A5-20-01, A5-20-04, A5-20-12, A5-30-01, A5-30-02, A5-38-08, D2-03-20, D2-06-01, D5-00-01, F6-02-01, F6-02-02, F6-02-03, F6-03-01, F6-03-02, F6-04-01, F6-05-00, F6-05-01, F6-05-02, F6-10-00
