AL-437-03-868 EnoSense® DESK / CE – Optimized EnOcean Sensor for desksharing

Compared to the EnoSense® WALL & DESK, our new sensor has a motion detector (PIR) in addition to a vibration sensor.

This enables it to detect movements below the edge of the desk and recognise people even if they do not touch the desk for a longer period of time due to their activity. It therefore forms the basis for your Smart Office and a desk sharing solution.

As things on the desk would often cover a solar cell, we have opted for pure battery operation in this case. The EnoSense® Desk sends a signal every 4 minutes when a person is detected.

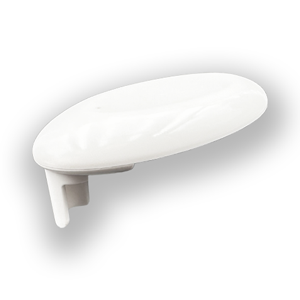

With its stylish design housing, it fits unobtrusively on any desk and is only 81 x 41 x 9 mm in size (measured without the PIR shield, otherwise +17 mm).

Select operating mode

You can use the integrated service button to select between the three possible operating modes at any time:

• Press once in 3 s: Mode 1 = Motion (PIR) only
• Press 2x in 3 s: Mode 2 = Vibration only
• Press 3x in 3 s: Mode 3 = Motion and PIR combined
