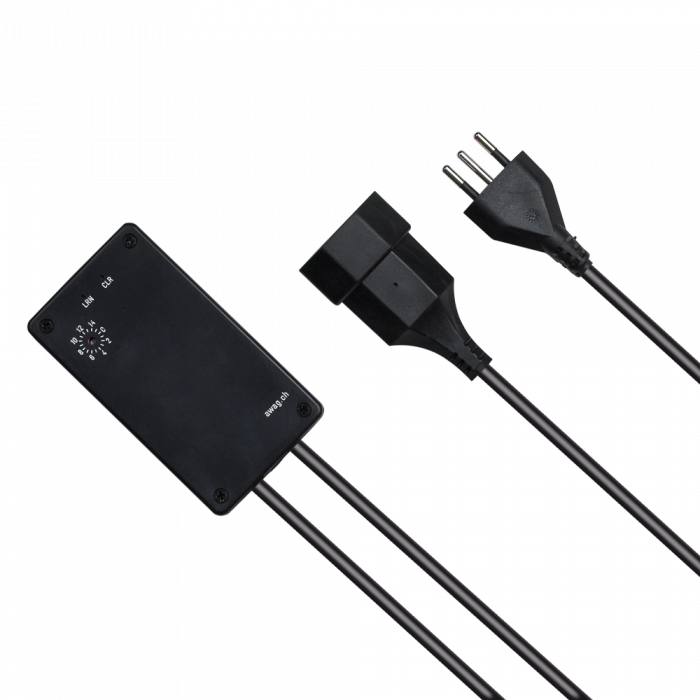

Omnio universal cable dimmer 1-channel KD230/10

The Omnio universal cable dimmer 1-channel KD230/10 is a device for dimming LED luminaires and other electrical loads. Thanks to automatic load recognition (R/L/C) the dimmer selects the right operating mode as well as the ideal dimming curve for the connected light source. Up to 50 Omnio radio transmitters can be programmed. Each transmitter can be assigned a function, for example dim with rocker-switch, dim with push-button, staircase light, predefined dim value, step-switch (AW20), timer (AW23/24/25), soft on/off, programmable scenes or presence simulation. Non-dimmable loads are automatically switched at zero crossing. Bidirectional communication, EEP D2-01-03, ARCO ready (AWAG Remote Commissioning). In addition this actuator can be used as repeater in case of range issues. Suitable as plug adapter.
